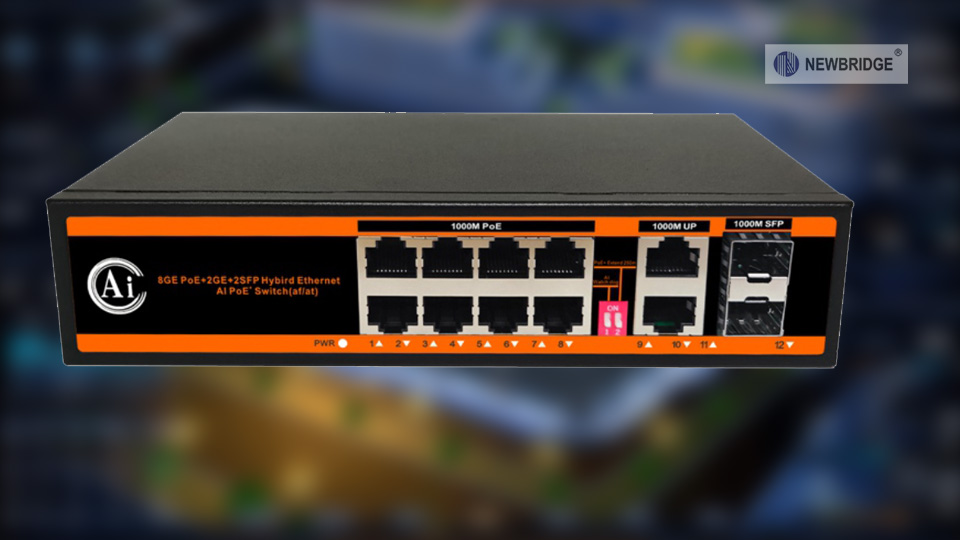

PoE switches play a crucial role in modern network deployment, as they can simultaneously transmit data and power to connected devices via Ethernet cables. However, like all electronic devices, PoE switches may also encounter firmware failures that can affect the normal operation of the network. This article will provide a detailed introduction to the recovery methods for firmware failures in PoE switches, offering a comprehensive solution from the professional perspective of Newbridge technical support.
Common manifestations of firmware failures in PoE switches
The device cannot start normally: After the switch is powered on, the indicator light status is abnormal, and the normal startup process cannot be completed. It may stay on the startup screen for a long time or restart continuously. For example, when some models of switches start up normally, the power indicator light should be constantly on, and the system indicator light will change from flashing to constantly on. However, when the firmware fails, the system indicator light may continue to flash or not light up at all.
Port power supply abnormality: One of the core functions of PoE switches is to provide power to connected devices such as IP cameras, wireless access points, etc. When there is a firmware issue, it may cause the port to malfunction and the powered device (PD) to not function properly. After firmware failure, some switches suddenly stop supplying power to ports that were originally normally powered on. By checking the power status of the ports through the command line, it is displayed as either not powered or with abnormal power supply.
Unstable network connection: Even if the switch can start up and appears to be working properly, firmware failure may cause unstable network connection issues. Manifested as frequent packet loss, high network latency, and intermittent device disconnections. For example, in a monitoring network, using a PoE switch to connect multiple cameras, due to firmware failure of the switch, some camera images often lag or interrupt, seriously affecting the monitoring effect.
Unable to access management interface: PoE switches typically provide a web or command-line management interface for configuring and monitoring device status. If the firmware malfunctions, it may not be possible to log in to the management interface through a browser or terminal software. After entering the correct IP address, username, and password, it may prompt a connection failure or page loading failure.
Recovery method for firmware failure of PoE switch
Confirm faults and backup data
Collect device information: Before starting the fault recovery operation, it is necessary to collect detailed information about the PoE switch, including device model, hardware version, current firmware version, etc. This information helps determine the applicable firmware version and recovery method. You can obtain relevant information by checking the labels on the device casing, device manual, or logging into the management interface under normal circumstances.
Backup configuration data: If possible, backup the current configuration data of the switch before attempting to restore firmware. This ensures that the switch can be quickly restored to its pre failure working state after the recovery process is completed, avoiding the tedious process of reconfiguration. The backup configuration methods for switches of different brands and models vary. Some can save configuration files to the local computer through the export configuration function in the management interface; Some require the use of command-line commands for backup.
Recovery method
Download firmware from the official website: Visit the official website of the PoE switch manufacturer and find the support page for the corresponding device model. On this page, search for the latest firmware version and download it to your local computer according to the instructions provided on the website. Be sure to ensure that the downloaded firmware version matches your device model and hardware version exactly, otherwise it may lead to more serious issues. For example, for a certain model of Huawei PoE switch, in the enterprise support section of its official website, after entering the device model, you can find the corresponding firmware download link and detailed version instructions.
Using TFTP Server Recovery: Many PoE switches support firmware recovery through TFTP (Simple File Transfer Protocol) servers. Set up a TFTP server on the computer and place the downloaded firmware file in the root directory of the TFTP server. According to the operation manual of the switch, enter its specific firmware recovery mode (usually entered through a specific key combination when the device is started), set the IP address of the switch in the same network segment as the TFTP server in this mode, and specify the IP address of the TFTP server and the firmware file name to be recovered. Then start the recovery process and wait for the switch to download firmware from the TFTP server and complete the installation. Taking some PoE switches from Cisco as an example, when the device starts up, press a specific button to enter ROM Monitor mode. Set TFTP server parameters and firmware file names through relevant commands to start recovery.
Serial console recovery: For situations where firmware cannot be restored using the conventional methods mentioned above, you can try using the serial console for recovery. We need to prepare a serial port cable to connect the computer's serial port to the Console port of the switch. Open the serial port terminal software on the computer (such as Hyperterminal or Putty under Windows system), set the correct serial port parameters (baud rate, data bits, stop bits, parity bits, etc., which can be found in the switch manual). Enter the underlying management interface of the switch through the serial port terminal and perform firmware recovery operations according to specific commands and steps. For example, some H3C PoE switches can start firmware recovery by entering a specific command sequence in the serial terminal and specifying the storage location of the firmware file (such as connecting to the switch through a USB storage device).
Professional technical support assistance: If you are not familiar with the above operations or have tried multiple methods but still cannot recover the firmware, it is recommended to contact the technical support team of the PoE switch manufacturer or a professional network technology service provider. They have rich experience and professional tools, which can diagnose problems more accurately and provide effective solutions. For example, Newbridge's technical support team has professional engineers who can provide remote or on-site technical support services for firmware failures of various brands and models of PoE switches, helping users quickly restore normal device operation.
Verification and optimization after recovery
Verify device functionality: After completing firmware recovery, the first step is to comprehensively verify the various functions of the PoE switch. Check if the switch can start up normally and if all indicator lights are in normal status. Test the power supply function of the port, connect the powered device, and check if the device can obtain power and work normally. Use ping commands or other network testing tools to check if the network connection is stable and if there are any issues such as packet loss or high latency. Log in to the management interface of the switch, confirm whether all configurations are loaded correctly, and whether configuration operations can be carried out normally.
Reconfigure and optimize: If configuration data is backed up before restoring firmware, the backup file can be imported into the switch to restore the configuration state before the failure. Then, based on actual network requirements, further optimize and configure the switch. For example, adjusting port speed, duplex mode, setting VLAN (Virtual Local Area Network) to improve network security and performance, optimizing PoE power supply strategy, and allocating power supply reasonably according to the power requirements of powered devices.
