FEATURES
Transmits HDMI video and audio signals up to 100M over a single CAT6 cable；
conforms to HDMI 2.0 standard, high-definition video signal resolution up to 3840*2160@60Hz
Compliance with HDMI 2.0 and HDCP 2.2 standard
Support USB KVM, can remotely use the keyboard and mouse operation
Standard Ethernet IEEE-568B connection for easy installation
High compatibility, can auto-match source and display device
Built-in automatic adjustment system, make the image smooth, clear and stable
Easy to install, plug and play ；
Newbridge® The HDMI KVM extender provides extension of HDMI signals long distances up to 100m over a single CAT6 cable. It supports high resolution up to 3840*2160@60Hz and Infrared signal transmission. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Parameter | Description | |
Video | Standards | HDMI 2.0; HDCP 2.2 |
Maximum pixel clock | 340MHz | |
Maximum data rate | 18Gbps | |
Maximum resolution | 3840*2160@60Hz | |
Connector | HDMI-A | |
Impedance | 100Ω | |
UTP | Interface | RJ45 |
Transmission distance | CAT6 - up to 100M at 4K@60 ， | |
IR | Interface | 3.5mm earphone seat |
IR frequency | 28Khz-61Khz | |
RS232 | Interface | Industrial Terminal |
Signal Direction | duplexing | |
Baud Rate | Self-adaptive,Max: 115200bps | |
Data Bits | 8 | |
Other | Power supply | The power adapter: DC 12V |
Power dissipation | MAX 13W | |
Temperature | Operating: -5℃ ~ +70℃ | |
Humidity | Operating: 5% ~ 90% | |
Dimension | 123*82*23mm | |
The warranty | 1 year free warranty | |

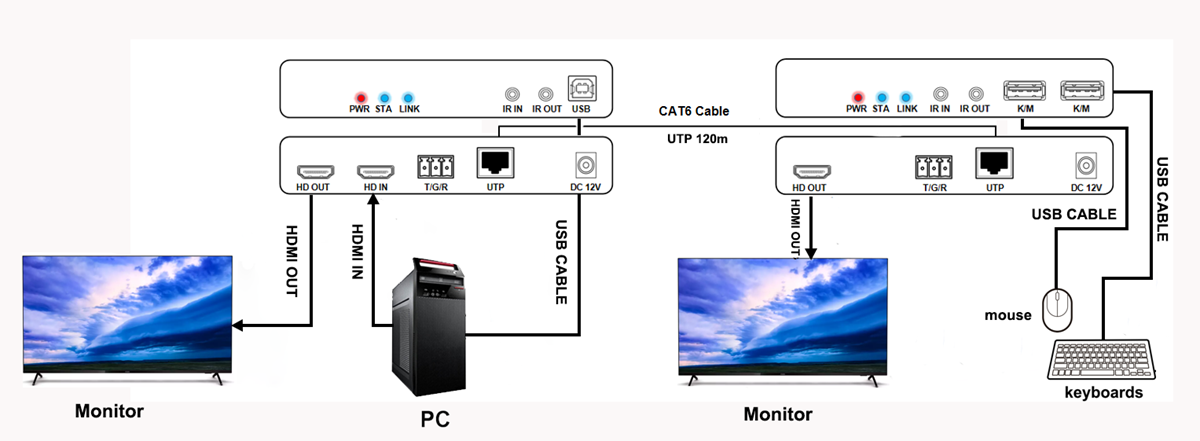

Panel |
Transmitter:
Receiver:
Port name | Description |
IR IN/OUT | IR Input/Output |
HD IN/HD OUT | HDMI Input/Output |
UTP | RJ45 cable port |
USB | USB Host is connected to your console or laptop |
K/M | Keyboard/mouse |
T/G/R | RS232 interface with TXD/GND/RXD at the terminal |
DC12V | The power input |
LED indicator | Description |
LINK | Normal state often off, flashing once: NO Link; flashing three times: forward video normal, reverse data abnormal; flashing four times: forward video abnormal, reverse data normal |
STA | The light is always on when it is in normal condition |
PWR | Power lamp |
