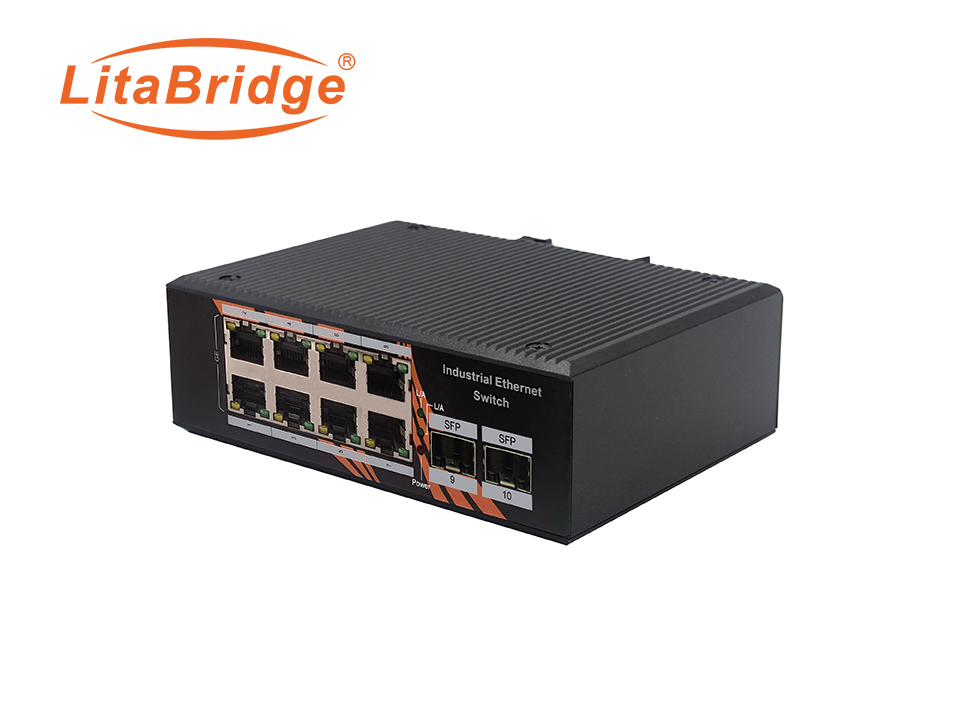

8 Port 10/100M/1000Mbps PoE+2*1Gbps SFP(SC)|Unmanaged Industrial Ethernet Switch ND2PG-2FX8TX

Hot Sale
Front
Front
Front
Front
Front
Industrial PoE Switch

8 Port Unmanaged Industrial Ethernet Switch with 2 SFP Slot - Newbridge

Newbridge is mainly a manufacturer of 8 Port Unmanaged Industrial Ethernet Switch with 2 SFP Slot,become a partner agent

FEATURES

  • 8 Port 10/100/1000Mbps PoE , 2 port 1000Mbps SFP slot

  • Automatic MAC address learning and aging

  • 10/100/1000Mbps Auto-negotiation , auto-MDI-MDI-X

  • LED indicators for monitoring power/link/activity

  • Supports 10/100/1000Mbps-Full/Half-duplex

  • Comply with IEEE802.3/802.3U/802.3x store and forward mode.

  • The electrical port supports IEEE802.3at/af standard PoE power supply function

  • Wide temperature working range -40℃~+85℃.

  • Industrial grade design, no fan, no cooling hole.

  • IP40 enclosure protection grade,

  • Meets industrial level 4 electromagnetic compatibility requirements

  • Redundant dual power input

  • Rail or wall mount

Newbridge®ND2PG-2FX8TX Industrial PoE Fiber switch, 8 Port 10/100/1000Mbps PoE ports and 2 port 1000Mbps SFP slot,for connecting with devices like computer, switch, hub, server, etc, as well as powering network camera, industrial VoIP phone, wireless AP and other PoE supported devices. Specially designed for harsh outdoor applications. Its 3KV network port surge protection and 6KV port Lightning protection can adapt to harsh outdoor environment and ensure the reliability of the uninterrupted PoE system. Power input also chooses industry- standard types of power.



Product Name

8 Port 10/100/1000M+2*1000Mbps   SFP Slot Umanagement industrial PoE switch

Product Model

ND2PG-2FX8TX

Interface

8x10/100/1000Base-T PoE port +2x 1000Mbps SFP Slot



Network Protocols

IEEE802.3 10BASE-T;   IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX; IEEE802.3ab 1000Base-T;

IEEE802.3z 1000Base-X;   IEEE802.3x;IEEE802.3af, IEEE802.3at；

IEEE 802.3x Flow Control









PoE Specification

PoE Standard:   IEEE802.3af/ IEEE802.3at

PoE ports: 1-8 ports   support PoE

Power Output:

Max. 15.4 watts (IEEE   802.3af)

Max. 30 watts (IEEE   802.3at)

PoE port Auto detect   AF/AT devices

Output Voltage:   DC48-57V

Power Pin   Assignment:1/2+;3/6-

Power Type: End-span(   Mid-span optional)

Network Media

10BASE-T: Cat3,4,5 UTP(≤100   meter)

100BASE-TX: Cat5 or   later UTP(≤100 meter)

1000BASE-TX: Cat6 or   later UTP(≤100 meter)

Fiber Media

Multi-mode: 2KM

Single-mode:   20/40/60/80KM

Interface:2*SFP



Performance Specification

Bandwidth:20Gbps

Packet Buffer Memory:1Mbits

10 Mbps Packet   Forwarding Rate：14880 pps/port

100Mbps Packet   Forwarfding Rate:148800 pps/port

1000Mbps   Packet Forwarfding Rate:1488000 pps/port

MAC Address Table: 8K

Switching Delay: <10us

Forwarding Mode

Store-and-Forward

Protection

6KV Lightening   protection, IP40 protection

LED Indicators

Power: PWR; Link; PoE;   Link/Act







Power Supply

Input Power: 48~57VDC (Terminal Block)

Input Power:2* 48~57VDC(Dual power redundancy backup)

Working   Consumption  : <8W

Connectors : Phoenix   terminal

Overload protection     :20A

Reverse polarity protection   : 120s

Alarm contact      : No



Working Environment

Working temperature:   -40～+85℃ ;

Storage temperature:   -40～+85℃

Relative Humidity:   5%~95 %( no condensation)







Industry Standard

EMI: FCC Part   15 Subpart B Class A, EN 55022 Class A

 EMS : IEC(EN)61000-4-2(ESD) : ±8kV contact   discharge, ±15kV air discharge

 IEC(EN)61000-4-3(RS) : 10V/m(80～1000MHz)

IEC(EN)61000-4-4(EFT):   Power line: ±4kV; Data line: ±2kV

 IEC(EN)61000-4-5(Surge): Power line:   ±2kVCM/±4kVDM; Data line: ±4kV

 IEC(EN)61000-4-6 (radio frequency   conduction): 3V(10kHz～150kHz), 10V(150kHz～80MHz) IEC(EN)61000-4-16(Common mode conduction) : 30V cont. 300V,1s

Shock: IEC   60068-2-27 Freefall: IEC 60068-2-32 Vibration: IEC 60068-2-6

Shell

IP40 protect grade,   metal shell

Installation

DIN-Rail or Wall mounts



Packing List

1×Industrial PoE Switch   (plus terminal block)

1×User   Manual/Certificate of quality/Warranty card

1×DIN-Rail mounting kit



Certification

CE mark, commercial;

FCC Part 15 Class B;

EN 55022 (CISPR 22),   Class B

MTBF

300,000 hours

Weight & Size

Product Weight: 0.9 KG

Product size (L×W×H): 120mm×85mm×   28mm

Warranty

3-years


Ordering Models

8 Port 10/100M/1000Mbps PoE+2*1Gbps SFP(SC)|Unmanaged Industrial Ethernet Switch ND2PG-2FX8TX
