24 port 100/1000Mbps Ethernet Switch 12V2A ND-920-24TX
100/1000M 24 port Ethernet Switch 12V2A | factory and suppliers | Newbridge
Newbridge mainly a manufacturer of 10/100/1000M 24 port Ethernet Switch,Become a partner agent to get the best price.
FEATURES
Provide 24 10/100/1000M adaptive RJ45 ports
All ports can achieve wire-speed forwarding;
LED dynamic indicators for easy status indication and
troubleshooting
Low power fanless design, eliminating noise
interference and improving product stability
Support port automatic flip, more convenient to use
Support MAC address self-learning

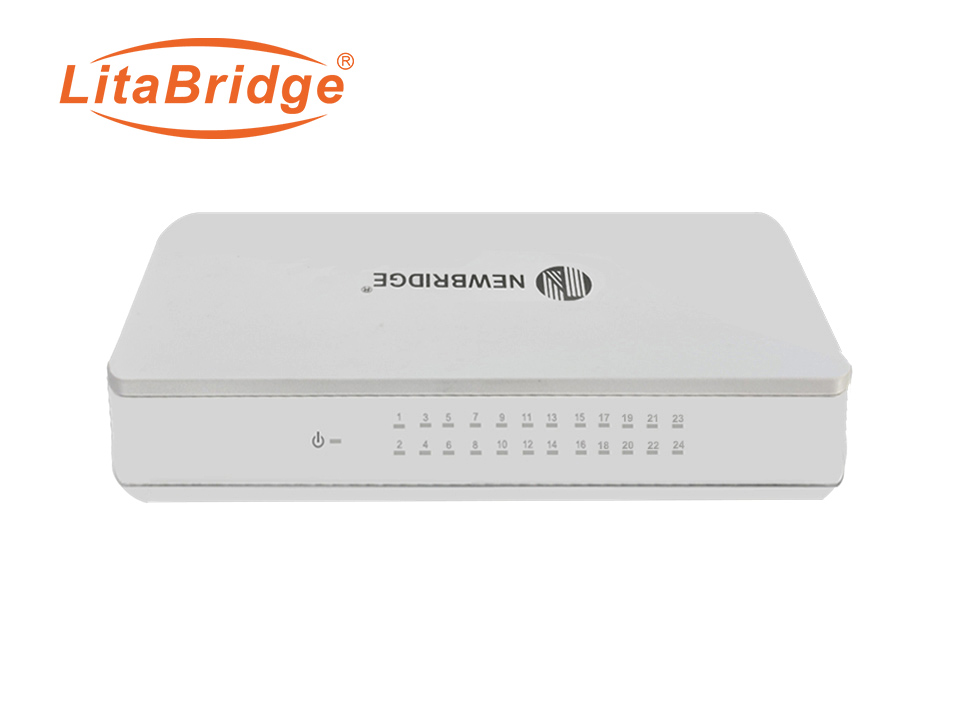

Newbridge® The ND-920-24TX 24-port 10/100/1000M unmanaged switch allows you to quickly, reliably
and efficiently build wired networks in your home or office. The switch is designed to enhance the
performance of small workgroups while providing network flexibility. The device is easy to use, users only
need to connect the device to any port via a network cable. The ND-920-24TX can be connected to multiple
computers for file sharing. Share your internet connection by connecting it to your router.
ND-920-24TX does not use wind Fan, can work quietly, so that you can watch streaming media from the
network and browse the web quietly.
The ND-920-24TX is a plug and play device. Easily connect multiple computers with no configuration
required for file, music and video sharing on a home or small office network. When the port's buffer is full,
the 802.3x flow control feature minimizes packet loss, providing a more reliable data transfer connection for
connected devices.
ND-920-24TX can adapt to 10/10/1000Mbps ports. Each port has LED indicators to indicate link
connectivity and activity. These ports can detect network speed and auto-negotiate between 10BASE-T and
1000BASE-TX, as well as full-duplex and half-duplex, to provide the best possible network speed for every
device connected to the network. The ND-920-24TX also supports automatic MDI/MDIX recognition,
allowing you to use regular pass-through twisted pair cable to connect each port to a server, hub, router or
other switch
Product Name | 24 Port 10/100/1000M Fast Ethernet switch |
Product Model | ND-920-24TX |
Interface | 24x 10/100/1000Base-T ports |
Network Protocols | IEEE802.3 10BASE-T； IEEE802.3i 10Base-T； IEEE802.3u 100Base-TX； IEEE802.3ab 1000Base-T； |
IEEE802.3z 1000Base-X； IEEE802.3x | |
Network Media | 10BASE-T: Cat3,4,5 UTP 100BASE-TX: Cat5 or later UTP 1000BASE-TX: Cat5 or later UTP |
Performance Specification | Bandwidth: 48Gbps Packet Buffer Memory:2Mbits 10 Mbps Packet Forwarding Rate：14880 pps/port 100Mbps Packet Forwarfding Rate:148800 pps/port MAC Address Table: 2K Switching Delay: <10us |
Forwarding Mode | Store-and-Forward |
LED Indicators | Power: PWR; Link: Link/Act |
Power Supply | Input Power: 100-240V～ 50/60Hz AC Working Consumption : <1W |
Working Environment | Working temperature: 0～+40℃ ; Storage temperature: -40～+70℃ Relative Humidity: 5%~90 %( no condensation) |
Packing List | 1×Industrial16-port Fast Ethernet Switch 1×User Manual/Certificate of quality/Warranty card 1×Power Adapter |
MTBF | 300,000 hours |
Weight & Size | Product Weight: 0.91KG Product size (L×W×H): 216mm x 123mm x 38mm |
Ordering Models
24 port 100/1000Mbps Ethernet Switch 12V2A ND-920-24TX
Shipping & Lead Time
Sample Order: 1-3 business days via DHL/FedEx/UPS.
Bulk Order: 7-15 business days depending on quantity.
OEM/ODM: 25-35 business days including custom packaging.
MOQ: 10 units for standard models; 100 units for OEM branding.
Port: FOB Shenzhen / Hong Kong.
How to Order
1. Click the "Send Enquiry" button above or email info@cnnewbridge.com with your required model and quantity.
2. Our sales team will provide a quotation within 24 hours, including pricing, shipping cost, and estimated delivery time.
3. Confirm the proforma invoice (PI) and arrange payment via T/T, Western Union, or PayPal.
4. Production and quality inspection followed by shipment with tracking number provided.
