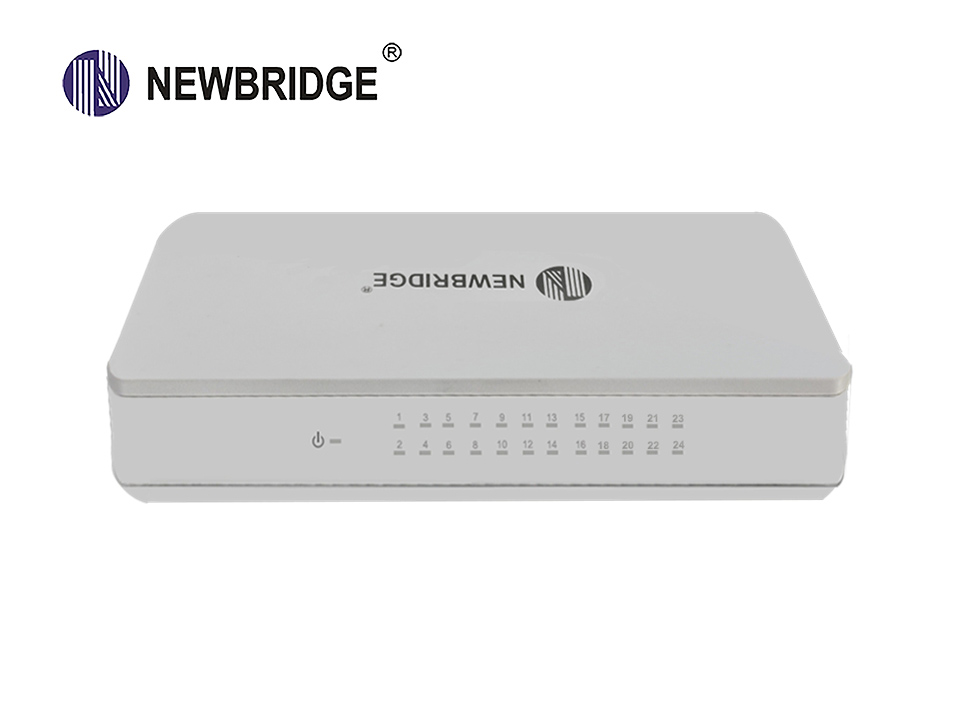

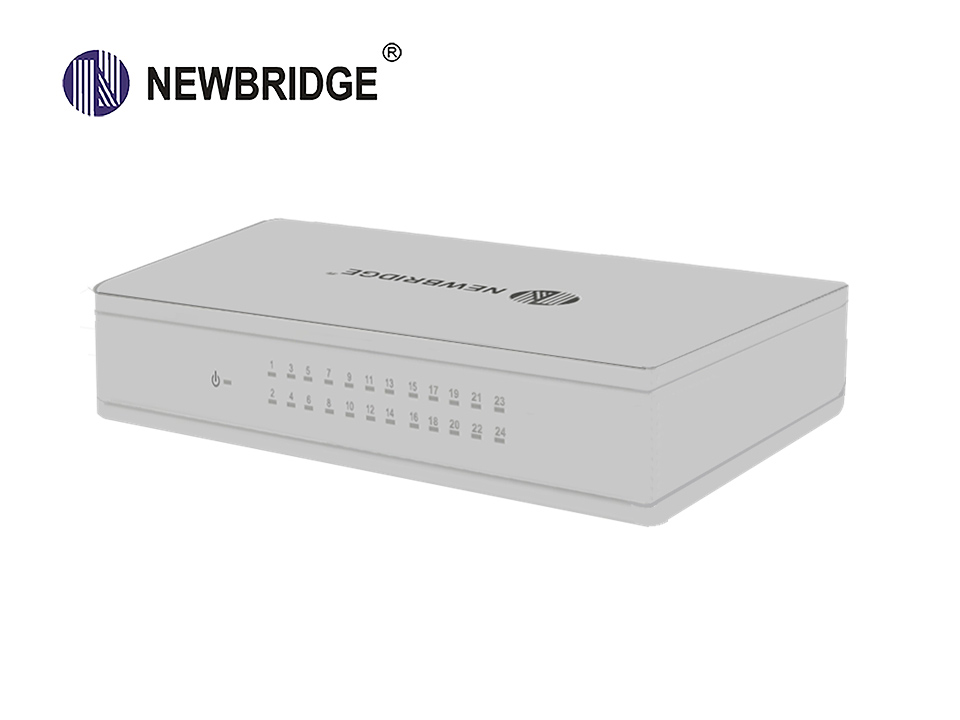

24 Port 10/100Mbps 12V2A Ethernet Switch|ND-820-24TX

 Click on the picture to enter the Gallery

FEATURES

Provide 24 10/100M adaptive RJ45 ports

All ports can achieve wire-speed forwarding;

LED dynamic indicators for easy status indication and troubleshooting

Low power fanless design, eliminating noise interference and improving product stability

Support port automatic flip, more convenient to use

Support MAC address self-learning


    Newbridge® The ND-820-24TX 24-port 10/100M unmanaged switch allows you to quickly, reliably and efficiently build wired networks in your home or office. The switch is designed to enhance the performance of small workgroups while providing network flexibility. The device is easy to use, users only need to connect the device to any port via a network cable. The ND-820-24TX can be connected to multiple computers for file sharing. Share your internet connection by connecting it to your router.

    ND-820-24TX does not use wind Fan, can work quietly, so that you can watch streaming media from the network and browse the web quietly.

    The ND-820-24TX is a plug and play device. Easily connect multiple computers with no configuration required for file, music and video sharing on a home or small office network. When the port's buffer is full, the 802.3x flow control feature minimizes packet loss, providing a more reliable data transfer connection for connected devices.

    ND-820-24TX can adapt to 10/100Mbps ports. Each port has LED indicators to indicate link connectivity and activity. These ports can detect network speed and auto-negotiate between 10BASE-T and 100BASE-TX, as  well  as  full-duplex  and   half-duplex,  to   provide  the   best  possible  network  speed  for   every  device connected to the network. The ND-820-24TX also supports automatic MDI/MDIX recognition, allowing you to use regular pass-through twisted pair cable to connect each port to a server, hub, router or other switch



Product Name

24 Port 10/ 100M Fast Ethernet switch

Product Model

ND-820-24TX

Interface

24x 10/ 100Base-T ports



Network Protocols

IEEE 802.3 10BASE-T;

IEEE 802.3u 100BASE-TX

ANSI/IEEE802.3NWay auto-negotiation

IEEE 802.3x flow control

Network Media

10BASE-T: Cat3,4,5 UTP

100BASE-TX: Cat5 or later UTP



Performance Specification

Bandwidth: 4.8Gbps

Packet Buffer Memory: 1Mbits

10 Mbps Packet Forwarding Rate14880 pps/port

100Mbps Packet Forwarfding Rate:148800 pps/port

MAC Address Table: 2K

Switching Delay: <10us

Forwarding Mode

Store-and-Forward

LED Indicators

Power: PWR; Link: Link/Act

Power Supply

Input Power: 100-240V~ 50/60Hz AC Working Consumption    : <1W



Working Environment

Working temperature: 0+40 ;

Storage temperature: -40+70

Relative Humidity: 5%~90 %( no condensation)



Packing List

Industrial16-port Fast Ethernet Switch

 User Manual/Certificate of quality/Warranty card

 Power Adapter

MTBF

300,000 hours

Weight & Size

Product Weight : 0.91KG

Product size (L×W× H): 216mm x 123mm x 38mm
