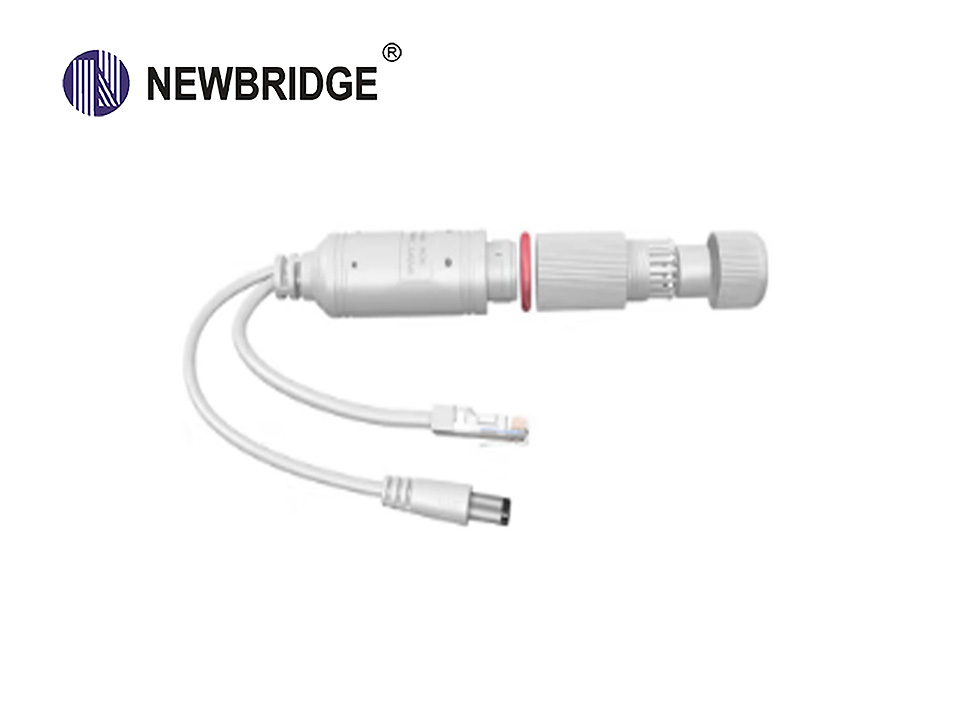

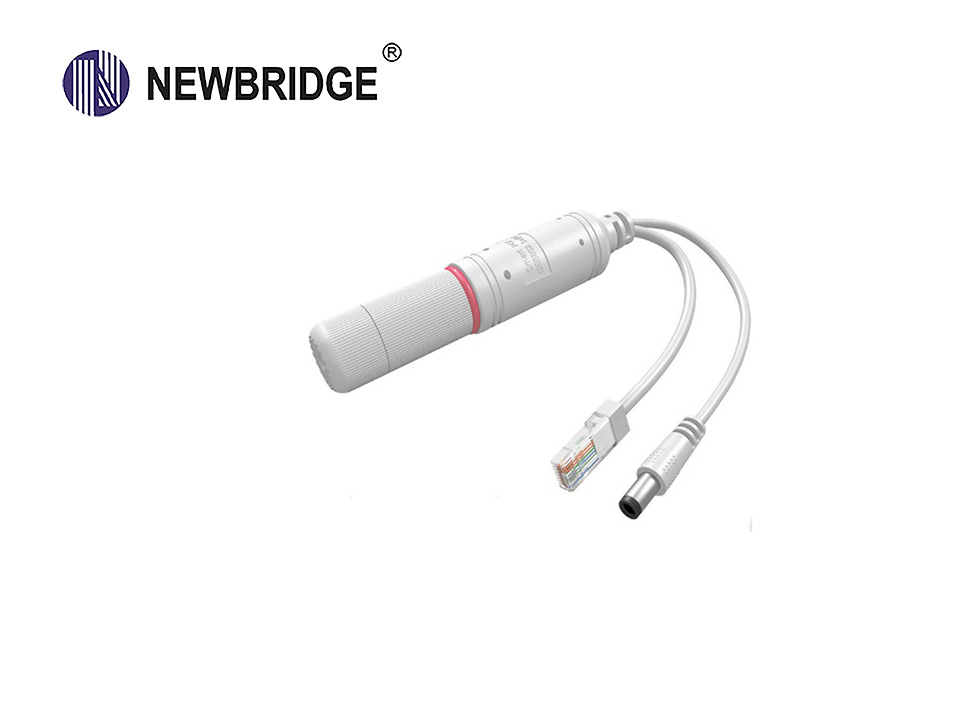

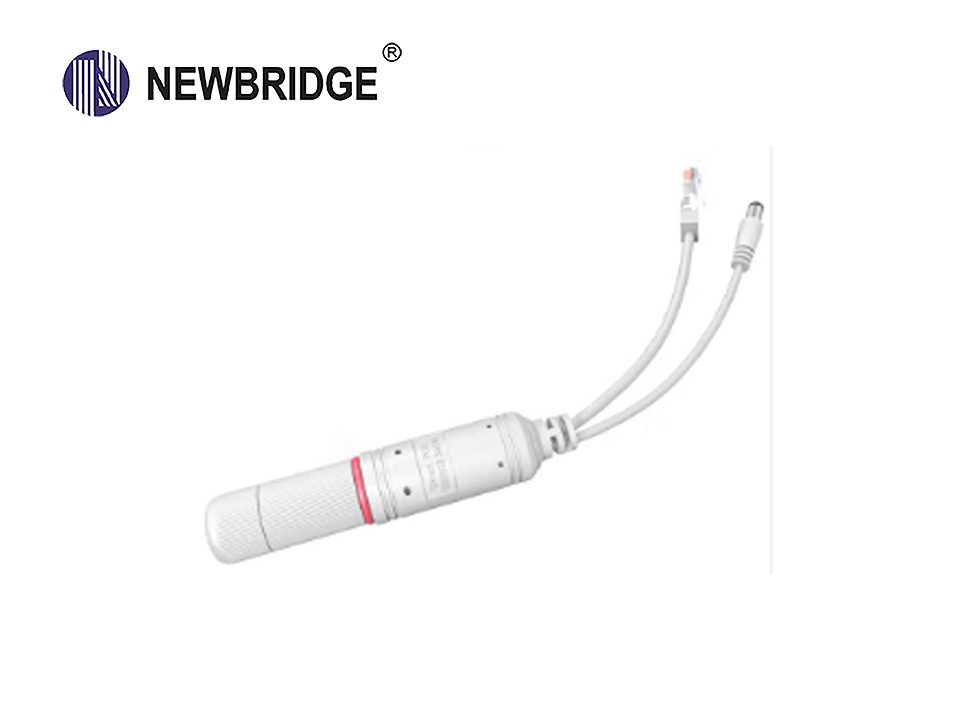

10/100M 48V non-isolation type PoE splitter(waterproof type)|ND-PS803W

 Click on the picture to enter the Gallery

FEATURES

  • Support IEEE802.3 af

  • Output power 15W

  • Output voltage 12V

  • The transmission bandwidth is 10/100M

  • Signal network transformer isolation, more effective anti-interference and anti-surge function

  • With automatic identification of powered, short-circuit automatic protection, over-current automatic disconnection and other functions

  • Outdoor waterproofing


Newbridge®  ND-PS803W POE splitter is  an outdoor waterproof PoE splitter carefully crafted by NEWBRIDGE. It conforms to the IEEE 802.3af standard and can provide DC 12V power supply for network terminals below 15W, with a transmission bandwidth of 10/100M.

   The ND-PS803W POE splitter separates the power and data signals transmitted through the network cable, and is used with power supply equipment that conforms to the IEEE 802.3af standard (such as PoE power supply switches, PoE centralized power supplies, PoE power supply transceivers, etc.) Network devices that support PoE provide both data and power. The ND-PS803W splitter can output 12V voltage and can be used with power supply equipment to flexibly expand home network and office network without being restricted by the layout of power lines.

 The ND-PS803W POE splitter has good compatibility, strong anti-interference ability, short-circuit overload protection and other good performance, compatible with all standard non-standard switches, It supports standard 1236 power supply and non-standard 45+ 78- power supply. The standard poe splitter can be used with standard 48V POE switches or non-standard 48V POE switches.

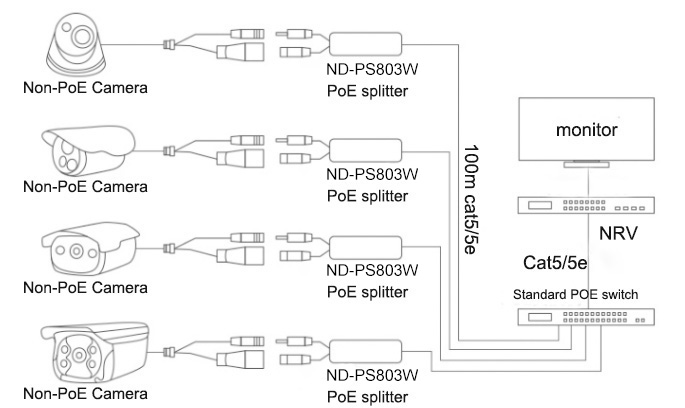

10/100M 48V non-isolation type PoE splitter Applicaton


Product   Name

Waterproof POE splitter   (non-isolation)

Product   Model

ND-PS803W

PoE   Standard

IEEE 802.3af

Network   Media

10BASE-T: Cat3,4,5 UTP(≤100 meter)

100BASE-TX: Cat5 or later UTP(≤100   meter)







PoE   Specification

PoE Standard:  IEEE802.3af

Power Output:

Max. 15.4 watts (IEEE 802.3af)

Input Voltage: 36V-57V

Output Voltage: DC12V

Power supply   pin:1/2 (+) 3/6 (-) or 4/5 (+) 7/8 (-), input and output ports support   4-pin/8-pin power supply



Use environment

Working   temperature: -10 ℃~ 60 ℃

Working   humidity: 10%~90%

non-condensing   Storage humidity: 5%~95% non-condensing

Dielectric strength

1.0KVAC/1min

Insulation resistance

≥500MΩ@500VDC

protect the circuit

surge,   overheating, overcurrent

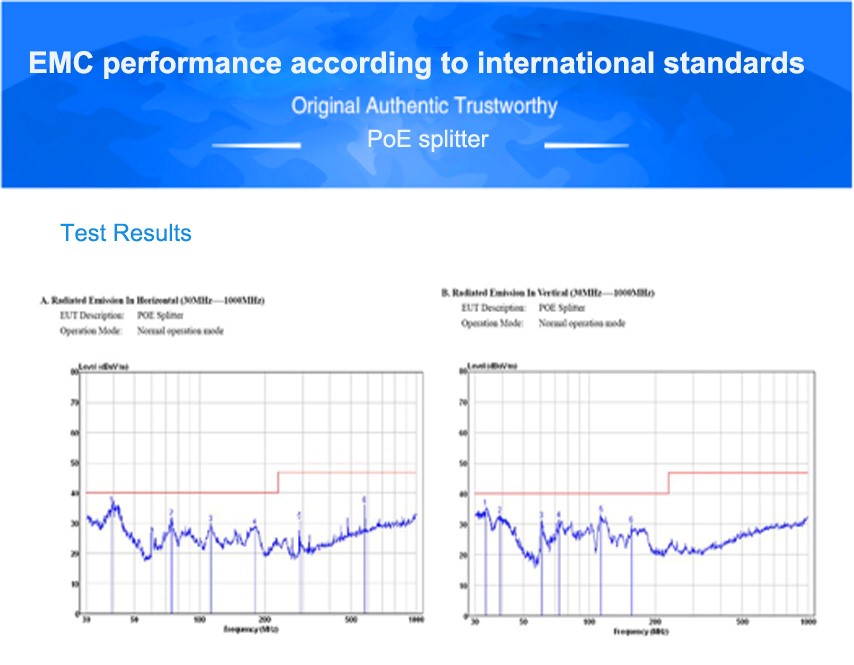

Electromagnetic Compatibility Standard EMC

EN55022 classB,EN55024,EN61000-3-2,3,EN61000-4-2,3,4,5,6,8,11


10/100Mbps 48V non-isolation POE Splitter ND-PS803W character
