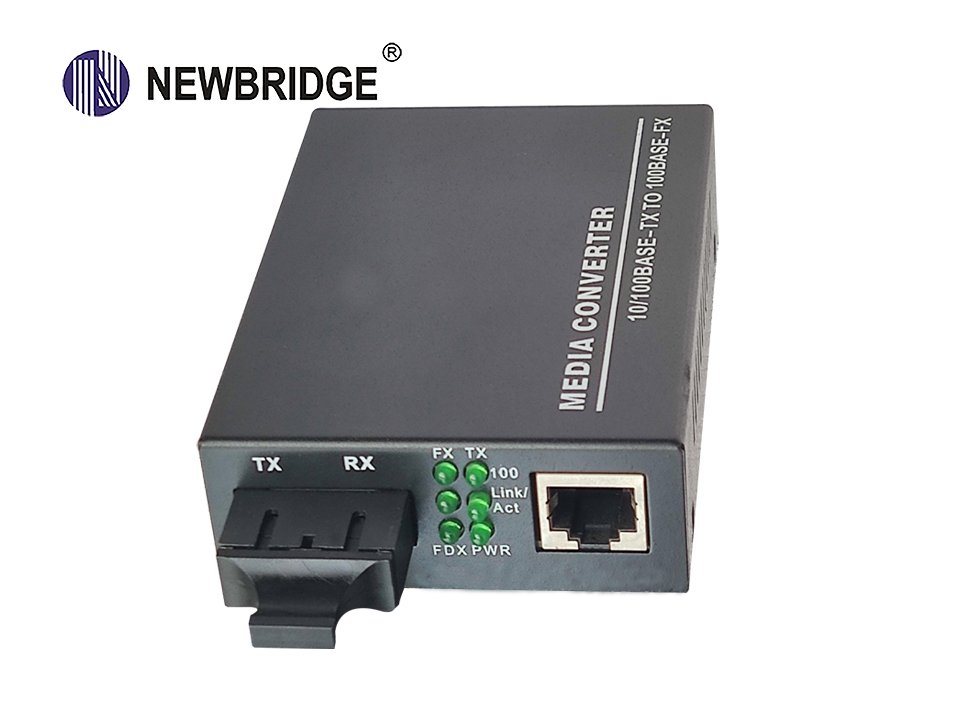

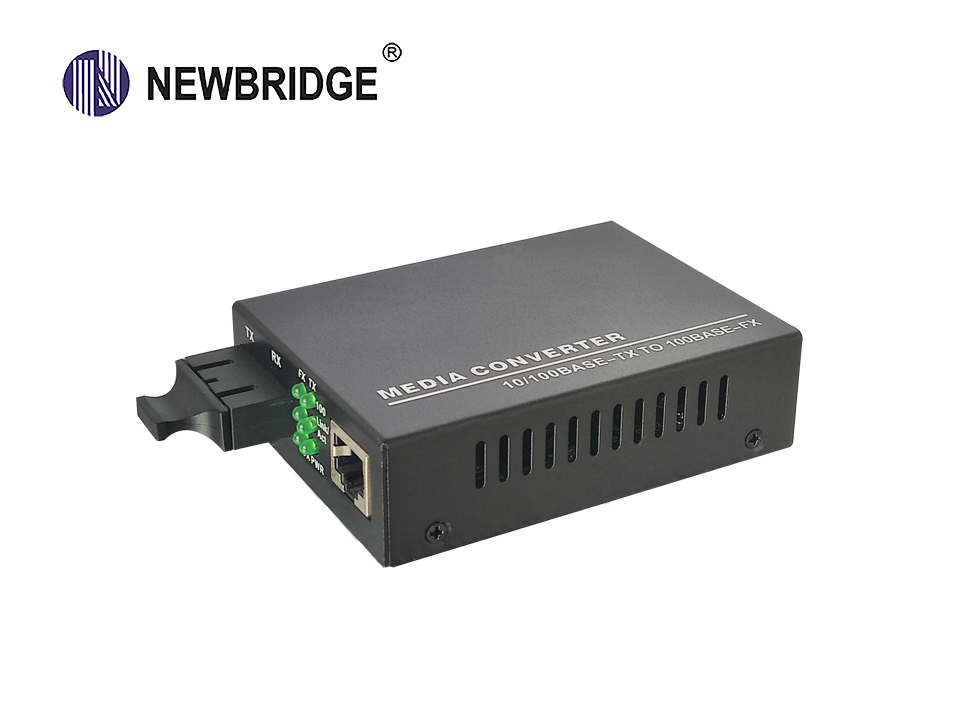

10/100M Dual fiber Single mode Smart Media Converter|ND-820SSW-20

 Click on the picture to enter the Gallery

FEATURES

  •  10/100M smart media converter

  •  1*100M optical port ,1*10/100M RJ45

  •  100M Dual fiber Singlemode,1310nm,SC, 0~20KM

  •  Support LFP function, Auto MDI / MDI X

  •  LFP (Link Fault Pass-Through) for indication of a link failure on the transmitting  path  of the  FX  receiving circuitry.

  •  Supporting Far End Fault function on FX port

  •  Supporting   Transparent   to   802.1Q   VLAN   tagged packets

  •  Supporting the transmission of extra-long packets up to 1600 bytes

  •  Supporting  store  and  forward   mode  /  transparent transfer mode selectable by DIP switch

  •  Provides    user    accessible    settings    for   TP     port configuration,    disabling     link    fault     pass-through function

  •  Extremely  low  power  consumption  (less  than  2W), low  heat,  reliable  quality,  stable  performance,  and long lifetime


Newbridge®10/100M  media  converter  with  external  power  supply  are  designed  to transmit  and  receive  10/100Mbps  data  over  optical  fiber.  The   electrical  interface  will Auto-Negotiate  to  a  100Mbps  or  100Mbps  Ethernet  rate  without  any  adjustments.  The optical interface operates at a 100Mbps Ethernet rate. Both are environmentally hardened to operate  in  extreme  temperatures.  LED  indicators  are  provided  for  confirming  equipment operating status.

Specially:This equipment also supports fixed 100M ethernet rate with the DIP switch

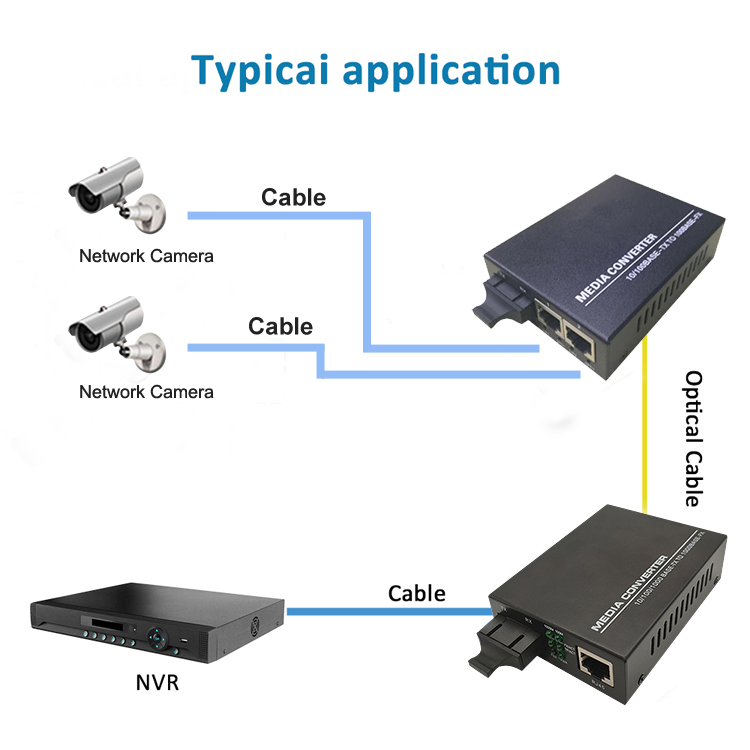

10/100M Dual fiber Single mode Smart Media Converter application


Parameters

Specifications



Standards

IEEE 802.3 10Base-T

IEEE 802.3u 100Base-TX/FX



Transmission Distance

100M Dual fiber Singlemode,1310nm,SC, 0~20KM,Stand alone

Port

1* 100M optical port ,1*100M RJ45

MDI/MDI-X

Support LFP function, Auto MDI / MDI X





Power Supply

External : 5V DC 1A/2A

Built-in: 90 V to 240 V AC 50Hz to 60 Hz

Power Consumption : 5W

Operating   Temperature




0   C to +65  C

Storage Temperature


-20   C to +65   C

Relative Humidity

5% to 90% (non-condensing)

Dimensions

95mm * 70 mm * 25mm

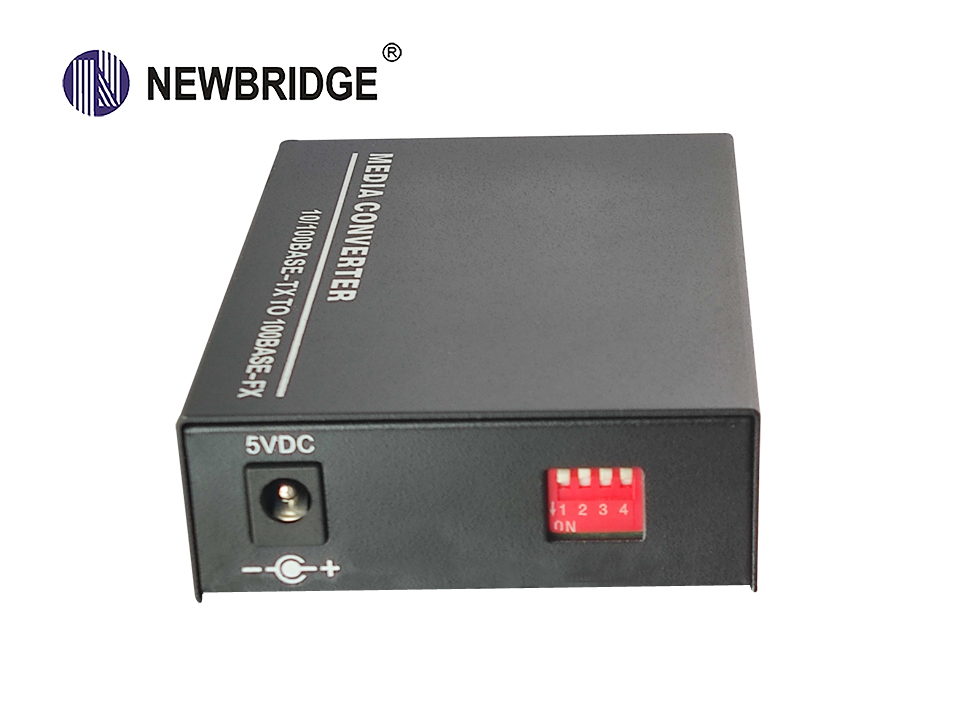

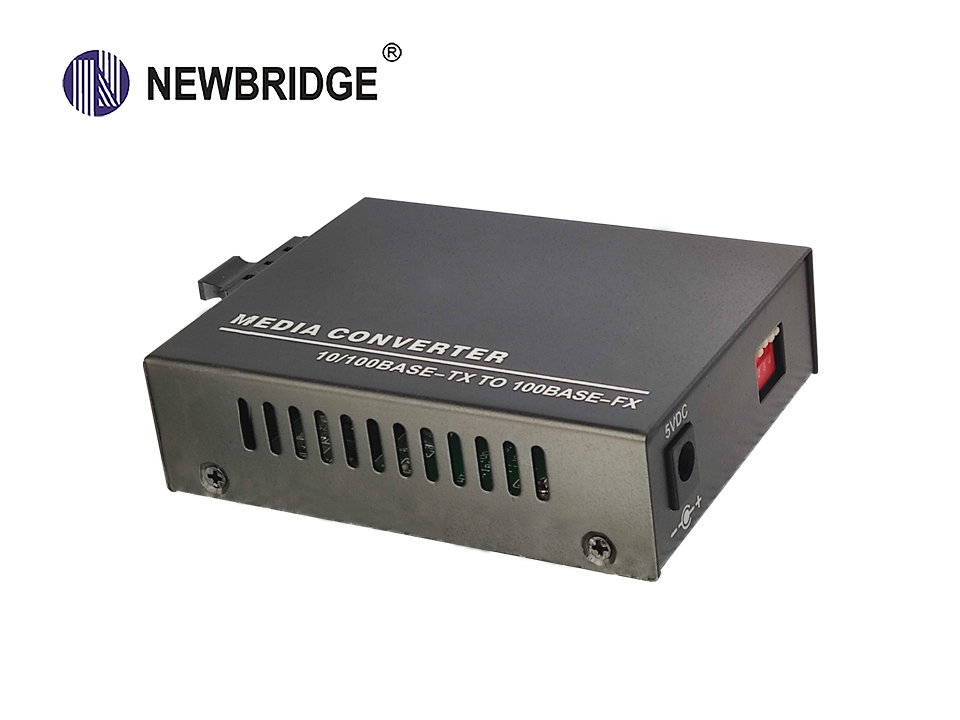

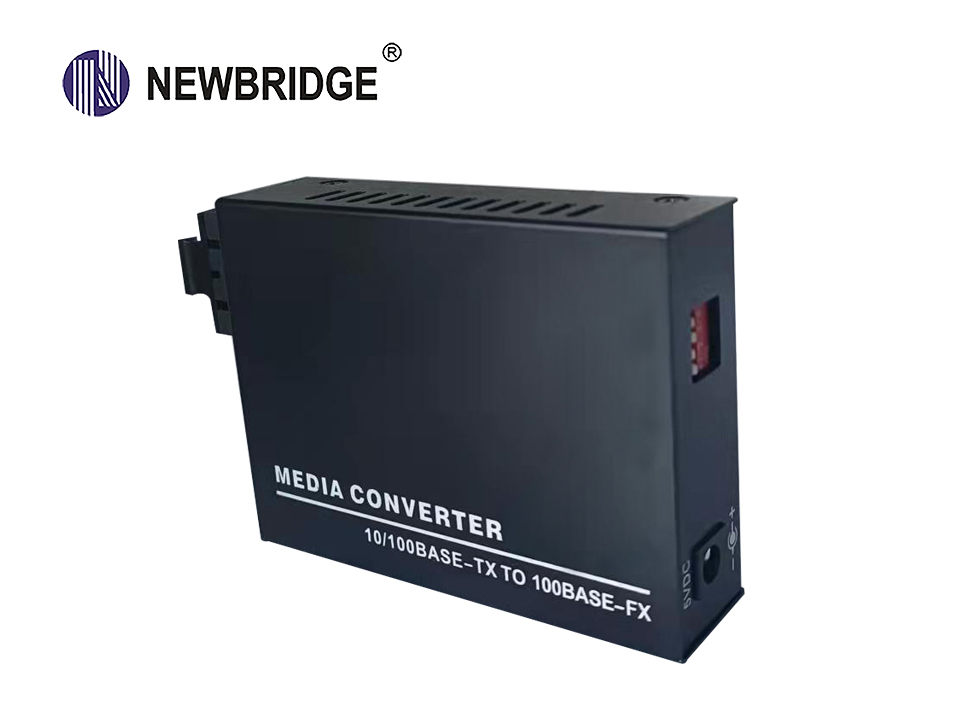

DIP SWITCH

*Toggle ON pin 1 to LFP is enable;    OFF is disable

*Toggle ON pin 2 to Store and forward switch is enablel;OFF pin 2 to Modified cut-through switch mode is enable

*Toggle ON pin 3 to auto-negotiation mode is enable;OFF pin 3 to force the TX port work 10/ 100Mbps,full/ half duplex *Toggle ON pin 4 to TX is work 10Mbps,     OFF is 100Mbps
