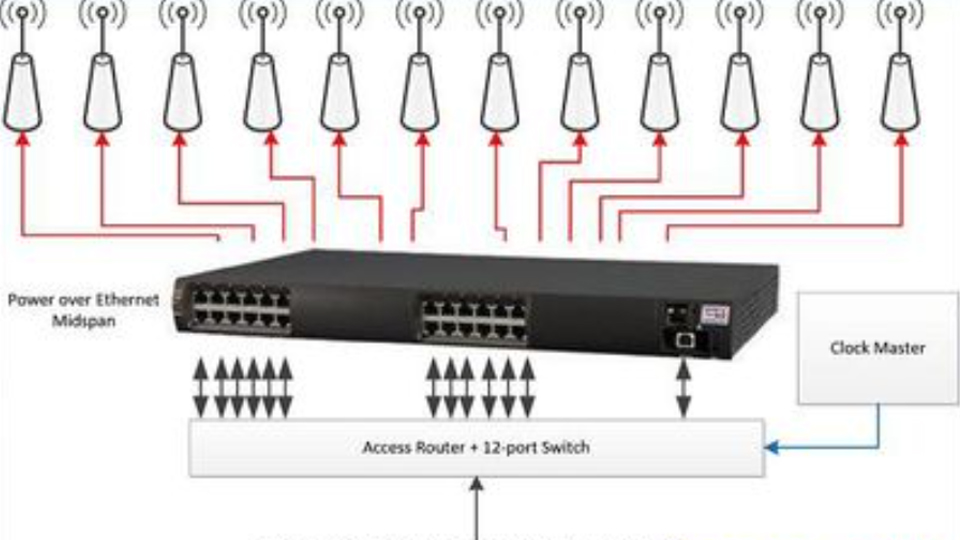

In fields such as the Internet of Things, security monitoring, and smart homes, PoE (Power over Ethernet) technology has become an ideal choice for device deployment due to its ability to transmit data and power simultaneously through a single Ethernet cable. However, the limitation of PoE power supply distance has always been a key challenge for engineering implementation. This article will delve into the core limiting factors of PoE power supply distance and provide you with efficient extension solutions based on cutting-edge industry technologies.
1、 Core limiting factors for PoE power supply distance
Dual constraints of standard specifications and physical properties
According to the IEEE 802.3af/at/bt standard, the theoretical maximum
is 100 meters. This limitation stems from the signal attenuation characteristics of twisted pair cables - the higher the data transmission rate, the more significant the signal distortion and power loss. For example, the equivalent impedance of Cat5e Ethernet cable at 100 meters must be less than 12.5 ohms, and high temperature environments (such as 60 ℃) will further reduce the transmission distance by 15%. In practical applications, if the power demand of a device exceeds the single port output capability of a PoE switch (such as 90W for PoE++), the voltage drop problem will further compress the effective power supply distance.
The implicit impact of equipment performance and wire quality
Switch performance: Low end devices have insufficient power management and switching chip capabilities, making it difficult to exceed the 100 meter limit even with high-quality cables. High end PoE switches (such as Tengda monitoring dedicated models) can extend the power supply distance to 200-250 meters through automatic speed reduction negotiation (10Mbps).
Cable difference: There is a significant difference in transmission loss between Cat5e and Cat6 Ethernet cables. Taking the 150 meter scenario as an example, the power loss of Cat6 Ethernet cable is about 20% lower than that of Cat5e, making it more suitable for long-distance deployment.
2、 Four core solutions to overcome distance limitations
Intelligent relay and segmented power supply technology
PoE repeater: Deploy repeaters at 80-90 meters to achieve signal restructuring and power compensation. For example, the Tengfei 100Mbps PoE repeater supports 250 meter power supply and dynamically adjusts voltage through 8-core intelligent power supply technology to ensure stable operation of end devices.
Segmented power supply strategy: Decompose the ultra long distance into multiple 100 meter segments, and relay power supply through PoE switches or relays for each segment. The Tengda S204PD docking station supports cascading 3 levels, with single level transmission not exceeding 100 meters, and can flexibly respond to multi-point expansion needs.

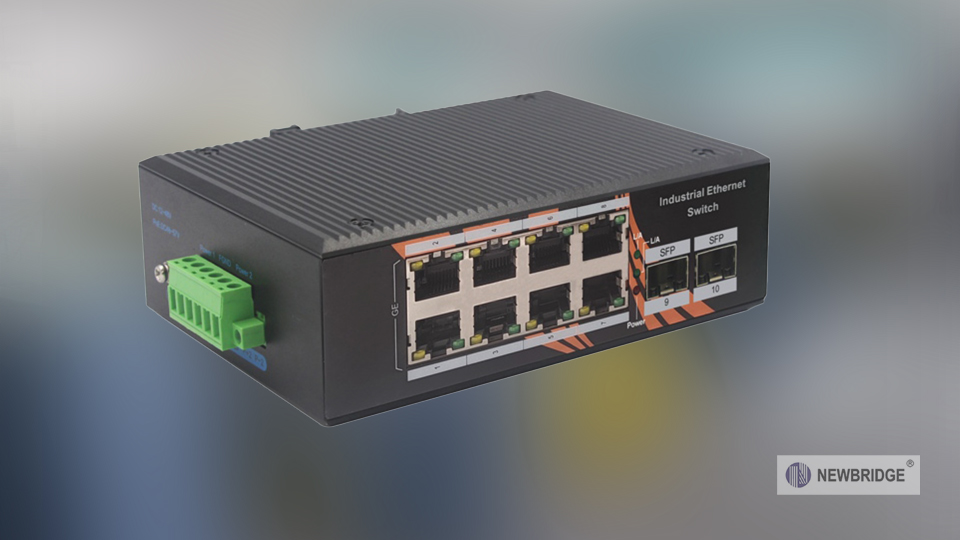

Fiber optic transmission and optoelectronic conversion scheme
Fiber optic+PoE converter: Data is transmitted through fiber optic cables, and the end is powered by a PoE separator. For example, the TP-LINK TL-FC314PB-20 fiber optic transceiver supports 20 kilometers of fiber optic transmission, with 4 PoE ports and a maximum output of 30W per port, making it suitable for long-distance scenarios such as park monitoring and industrial automation.
PoE fiber optic transceiver: integrates optoelectronic conversion and power supply functions, supports single-mode single fiber transmission. The FR220 series devices can be powered within 100 meters through Cat5 Ethernet cables and achieve long-distance data transmission through optical fibers.
Protocol optimization and rate adaptation
Speed reduction and extension mode: Forcefully reducing the port speed to 10Mbps can break through the 100 meter limit. The Huawei 25720 series switches support 200 meter power supply in this mode and require Cat5e or higher cables. The Dahua Management PoE Switch ensures the stability of ultra high definition video transmission even at a distance of 250 meters through its "long-distance PoE" function.
Intelligent power management: such as the "extended mode" of Tengda PoE switches, which dynamically allocates power to prioritize the power supply of critical equipment and avoid link interruptions caused by total power exceeding the limit.
Wire upgrade and environmental optimization
High specification cables: In 100-120 meter scenarios, Cat6A cables with a 23AWG diameter are preferred, as their lower impedance can reduce power loss by approximately 15%.
Heat dissipation and laying design: Avoid laying cables in high-temperature environments (such as direct sunlight), and reduce the impact of temperature on transmission performance through cable trays or pipelines.
3、 Typical Industry Scenarios and Solutions
1. Security monitoring: 250 meter ultra high definition video transmission
12 megapixel camera is deployed in an industrial park, located 180 meters away from the computer room. By using Dahua Management's PoE switch and enabling the "long-distance PoE" function, the video transmission delay has been reduced from 326.7ms for direct connection to 320.4ms, and the stream stability has been improved by 80%, effectively solving the problem of image quality lag over long distances.
2. Industrial automation: 500 meter 100Mbps stable transmission
certain factory's production line needs to deploy sensors and robotic arms 500 meters away. The Fengrunda AI6016H PoE switch utilizes 8-core intelligent power supply technology, combined with a long-distance splitter, to achieve 100Mbps transmission over 500 meters. It also supports overcurrent protection and intelligent power regulation, meeting industrial grade reliability requirements.
3. Smart Community: Hybrid Networking of Fiber Optic and PoE
A certain smart community adopts a "fiber backbone+PoE endpoint" architecture: the core computer room is connected to the building switch through fiber optics, and the access control, AP and other devices in the building are powered by PoE switches. The combination of TP-LINK fiber optic transceiver and Tengda extended mode switch achieves seamless connection between 20 kilometer fiber optic transmission and 250 meter PoE power supply.
4、 Selection and Implementation Suggestions
Priority of the plan
Within 100 meters: Priority should be given to using Cat6 Ethernet cables and standard PoE switches to balance cost and performance.
100-250 meters: Adopting a reduced speed mode PoE switch (such as Tengda S92PC) or repeater (such as Tengda 1-to-4 model), balancing distance and data rate.
Above 250 meters: Fiber optic+PoE converter solution is the optimal solution, such as TP-LINK TL-FC314PB-20 with PoE separator, which can achieve 20 kilometers of transmission and end power supply.
Cost and compatibility considerations
Initial investment: The single port cost of fiber optic solutions is about 3-5 times that of repeaters, but the long-term maintenance cost is low and suitable for high reliability scenarios.
Compatibility: Choose devices that support multiple protocols (such as IEEE802.3af/at/bt) to ensure seamless integration with existing powered devices. For example, the Zhongtongyuan multi output repeater is compatible with the IEEE802.3bt standard, and future upgrades do not require hardware replacement.
test and verification
Use a PoE tester to detect the terminal voltage and ensure it is ≥ 37V (802.3af standard).
Simulate actual loads for stress testing to verify the stability of the equipment under full power operation.
The limitation of PoE power supply distance is not insurmountable. Through technological innovation (such as fiber optic transmission and intelligent relay) and reasonable selection (high specification cables, protocol optimization equipment), enterprises can break through the 100 meter bottleneck and achieve stable power supply for 250 meters or even 500 meters. As a manufacturer of PoE devices, we are always committed to providing solutions that are "farther away, more stable in performance, and more cost-effective", helping various industries build efficient and reliable intelligent infrastructure. Contact us immediately for customized PoE power supply solutions
